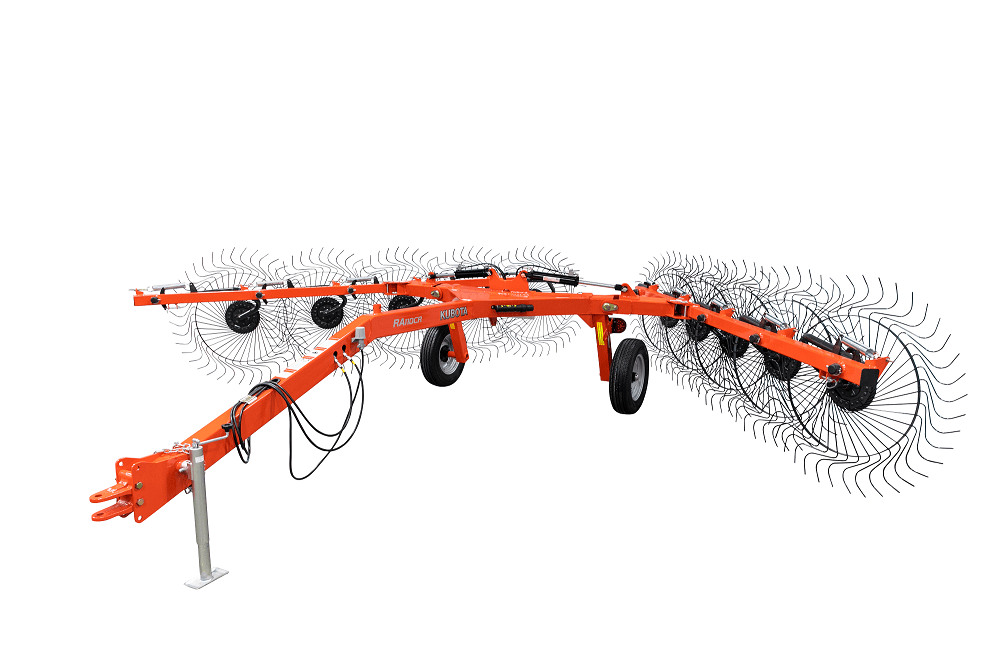

Not only is the Kubota RA110CR well-suited for handling dry hay, it features a 12-height adjustable drawbar to make sure you’re getting the best working angle for your needs. The rake is 21’ 6” long and spans a 20’ 4” working width, allowing for increased coverage of your windrows and makes sure you’re operating at peak potential. Individual rake wheel suspension will take you even further by following rough ground contour in uneven hay fields. Factor in the transport width of just 9’ 6” and there’s no denying that the RA110CR is one capable rake.

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • RAKE SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!

    RAKE SERIES
RA110CR

RA110CR

HP

Specifications

Hydraulic Circuits

closed-center or open-center, one remote

Hydraulic Power Required

1800psi, 10gpm

Minimum P T O Horsepower Required H P/ K W

40 hp

Transport Height Ft. (m)

Min: 8' (2.4) Max: 8' 9" (2.7)

Transport Length Ft. (m)

21' 2" (6.5)

Transport Width Ft. (m)

9' 6" (2.9)

Weight Lbs. (kg)

1640 (734)

Windrow Ft. (m)

Min: 34" (.8) Max: 72" (1.8)

Wing Spread

N/A

Working Length ( Max.)

21' 6" (6.6)

Working Width Ft. (m)

Min: 18' 4" (6) Max: 20' 4" (6.2)

Working Ft. (m)

55" (1.4)
