RA1047T

RAKES

Call Us

Extended Warranty

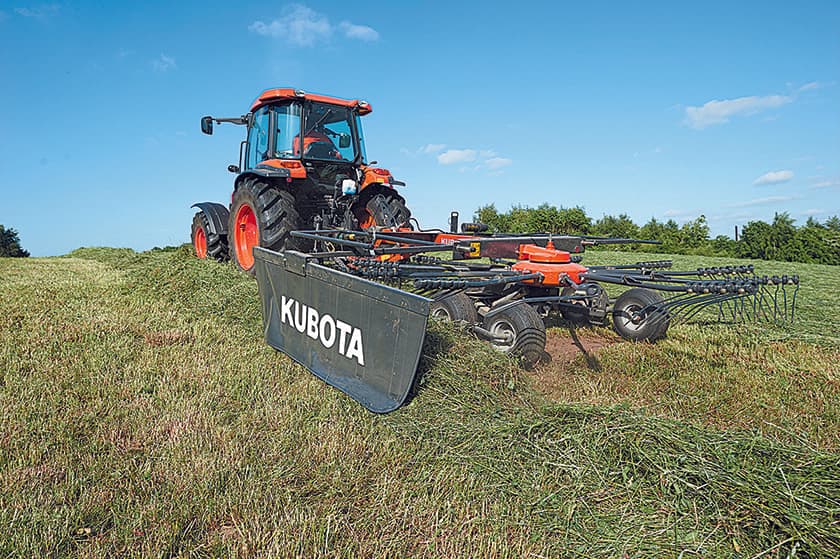

Thanks to a low center of gravity and high performance tine arms, the Kubota RA1047T amplifies your efficiency! This Kubota rake features exceptional maneuverability, letting you make tight turns on headlands and maximize your swathing, even in awkwardly-shaped fields. Easily set your rotor height, transport your rake and increase your precision in the field with the Kubota RA1047T!

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • RAKE SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!

    RAKE SERIES
Easy Set for Transport

Easy Set for Transport

The Kubota RA1035 width can be reduced to 5'9" for transport and storage by placing the tine arms on the carrier frame. The Kubota RA1042T can be easily converted to 6’7” for transport and entering into smaller fields or narrow gates.

Outstanding Durability

Outstanding Durability

The Kubota rakes are equipped for maximum raking performance. The FarmLine rakes all feature 9mm wire diameter tines for outstanding durability.

FarmLine Rakes

FarmLine Rakes

Kubota's FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.

Curved Tine Arms

Curved Tine Arms

All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.

Ideal for Low Horsepower Tractors

Ideal for Low Horsepower Tractors

The Kubota RA1035 and RA1042T single rotary rakes are designed for low power requirements, while still delivering considerable working width of 9’2” & 11'6" with swath and 10’2” on the RA1042T & 13’9” including swath, respectively. With a pivoting three point linkage machine (RA1035) as well as a trailed version (RA1042T), there is a model to meet any field or crop needs.

Trailed Suspension

Trailed Suspension

The trailed RA series is designed to work in a variety of crop conditions. The twin rotors work independently from each other, making it possible to collect either one large swath or two smaller swaths. Alternatively, the rake can place two large swaths into one, allowing for a total of up to 41’ crop to be gathered into one swath.

Kubota Compact Rotor

Kubota Compact Rotor

The rotor is grease lubricated within a fully enclosed housing. The maintenance-free cam track, cam followers, as well as the bearings of the rotor star axles, are permanently running in an oil bath. Both the rotor and pinion shaft are mounted on two bearings for maximum strength and long service life.

Tandem Wheels

Tandem Wheels

Trailed RA series machines come standard with tandem axles.

Exceptional Raking Performance

Exceptional Raking Performance

Up to eleven tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance in all types and volumes of crops.

Removable Tine Arms

Removable Tine Arms

All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.

To limit transport height further, the tine arms can be removed. The swath board folds up automatically. All tine arms including housing can be removed individually by just removing 3 bolts.

RA1047T

RA1047T

HP

Specifications

Capacity Theo. ( Acres/h)

11.4

Carrier Arm Compensating

N/A

Continuous Cam Track

N/A

Detachable Tine Arms

Standard

Farm Line

Standard

Fixed Tandem Axle

Standard

Gauge Wheel 16"

Optional

Height Adjustment

Mechanical

Linkage Drawbar

Standard

Locking Catch For Slopes

N/A

Lower Links (2-pt.)

N/A

Number Of Arms Per Rotor

11

Number Of Double Tines/ Arm

4

Number Of Rotors

1

Parking Height Ft.

7' 7"

Pivoting 3-pt Headstock (cat.)

N/A

Pivoting Tandem Axle

N/A

Pro Line

N/A

Road Lights

Optional

Rotor Diameter Ft.

11' (3.4)

Stand. Tires ( Carrying Frame)

N/A

Swath Delivery

Left

Tine Diameter In.

.35"

Tires ( Rotors)

18.5x8.5-8

Transport Length Ft. (m)

13' 2"

Transport Width Ft. (m)

6' 7"

Warning Panels

Optional

Weight Lbs. (kg)

1257 (570)

Working Width Ft. (m)

13' 9"
